Description

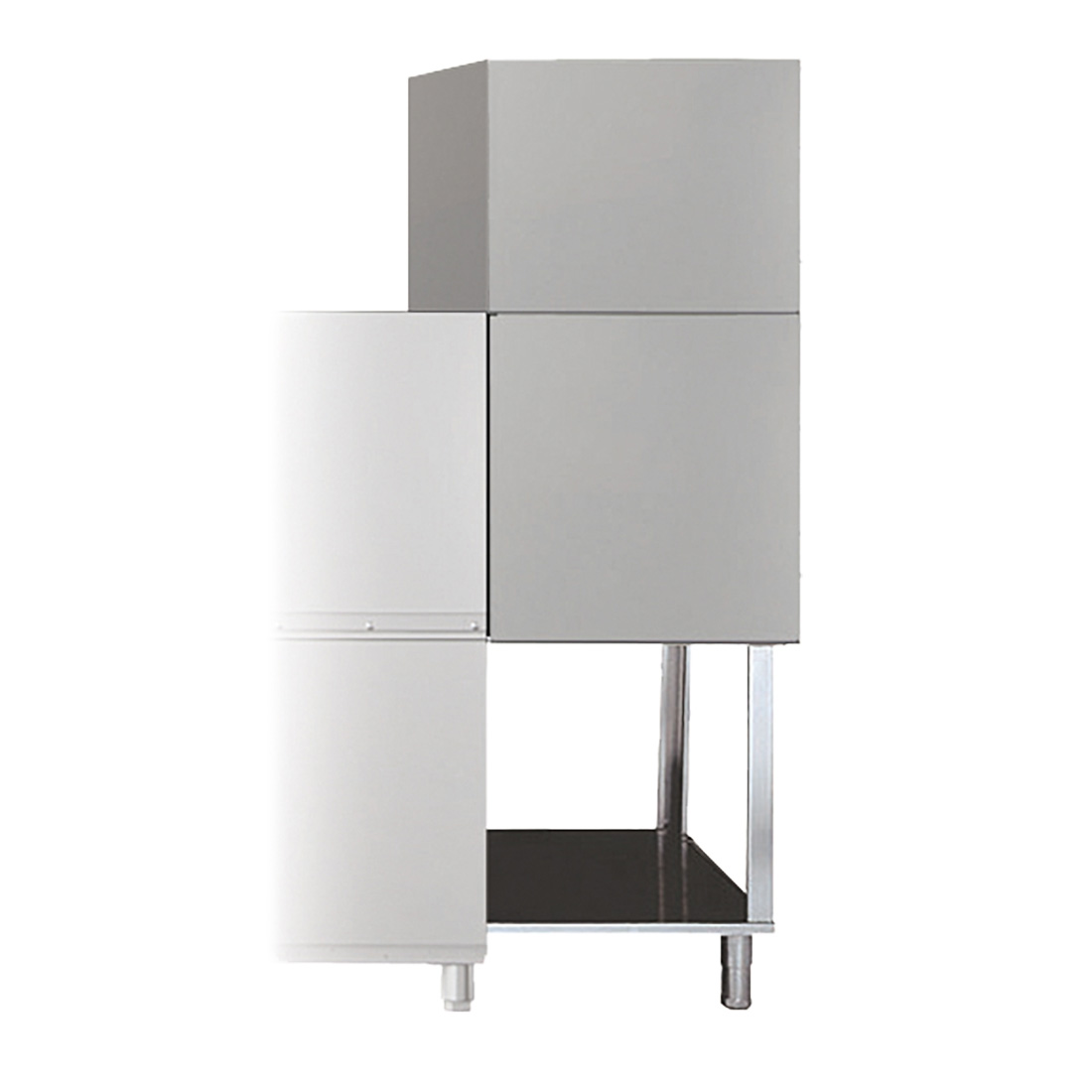

Drying tunnel TS for Fagor compact conveyor dishwasher – TS-COO
Key Features
- TS-COO Especially for Rack Conveyor Dishwasher modular models CCO-180 and CCO-225
- Supplementary element with 9kW heating element box and upper fan for drying off the dishes with 0.55kW motor
- All AISI-304 Stainless steel
- Upwards-opening double-panel door
- Easy access for cleaning
- Safety filter for pump suction
- Rinsing boiler with heat insulation
- Easy access for installation
- Electrical panel designed for easy connection of doses for liquid and solid detergents, rinse aid, limit switches,
- Washing arms are easily removable as a set, for cleaning
- Rinse jets are easily dismountable and removable.
- Wash (50 – 65 °C)
- Rinse (70 – 85 °C)
- Emergency stop button incorporated.
- Open door blocking system
- IPX4 protection system
- System for detection of blockage of conveyor carriage and automatic reverse function.
- High-power washing system with 4 upper and 4 lower washing branches
- 3 washing programs: deep, medium, and high capacity
- Double effect rinse.
- Energy-saving systems
- Included:
- 2 base baskets; 2 baskets for plates;
- 1 basket for glasses; 1 basket for cutlery
- Watermark approved
- Dimensions (WxDxH mm): 600x790x1945
2 Years Parts and Labour Warranty
