Description

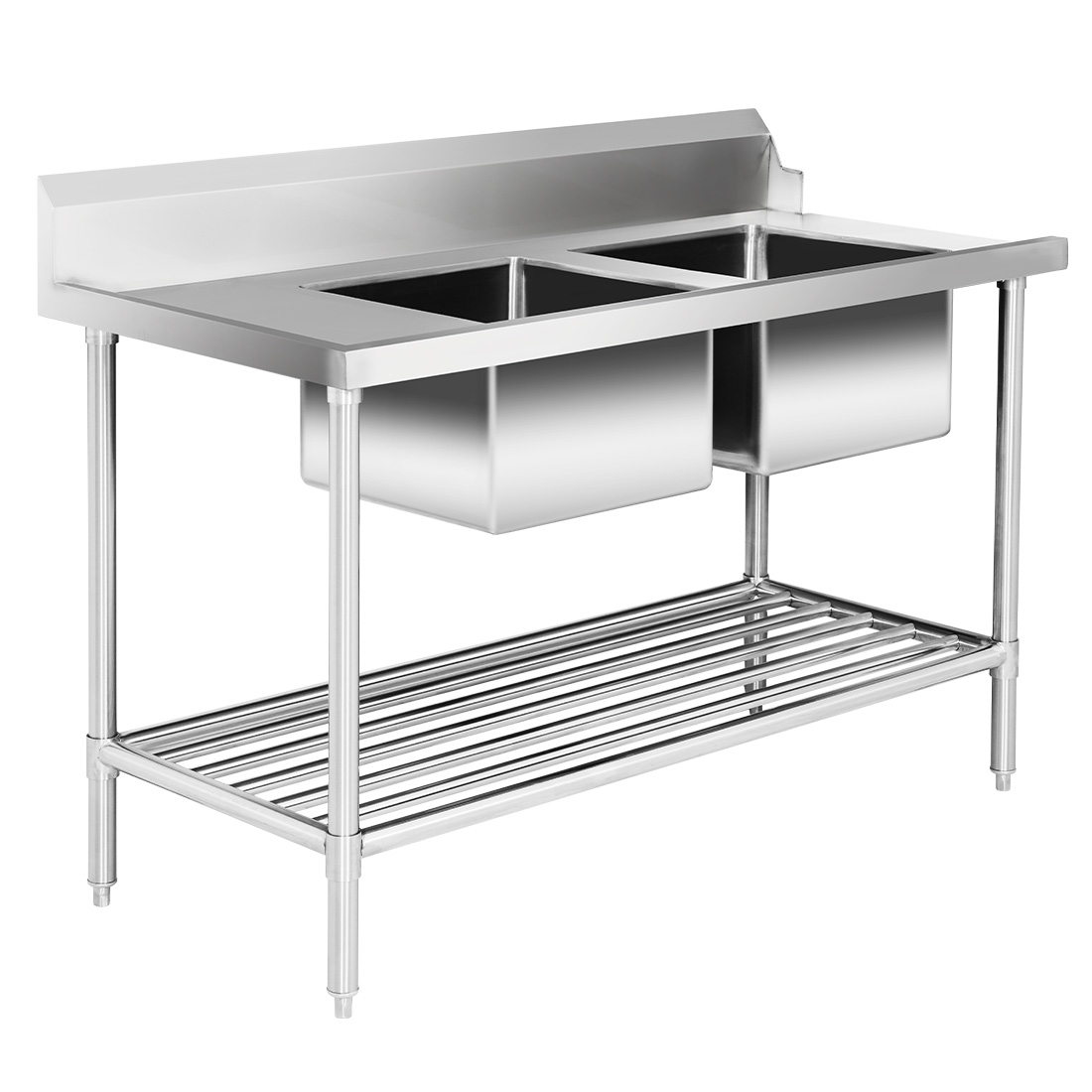

Right Inlet Double Sink Dishwasher Bench – DSBD7-1500R/A
Key Features
- 1500 mm wide
- 700 mm deep × 900 mm high
- Bowl size 450mmW×450D×300H; 90 mm Ø drain hole
- specially designed for quick & simple assembly
- come with an instruction manual & tools
- supplied flat-packed for ease of transport
- 4 legs per bench – 2100 & 2400 mm wide benches have 6 legs
- 1.2 mm S/S
- 15 mm wet edge
- left or right bowl positioning
- bowls are fully welded, polished inside & out
- 90 mm Ø drain hole
Splashbacks
- Stainless Steel backed
- 150 mm high; 30 mm thick
- beveled
- fully enclosed
Legs
- 1.2 mm S/S; 42 mm Ø
- fully adjustable S/S polished disc feet that match the legs perfectly
- castor kits available (lockable)
Benchtops
- 1.2 mm material; SUS304 (18/8)
- lined with XPS board, 15 mm thick & S/S panel
- special S/S ‘U’ channel reinforcements under – as the bench size increases so does the number of channels
Note
LEFT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the left side.
RIGHT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the right side.
2 Years Parts Only Warranty
